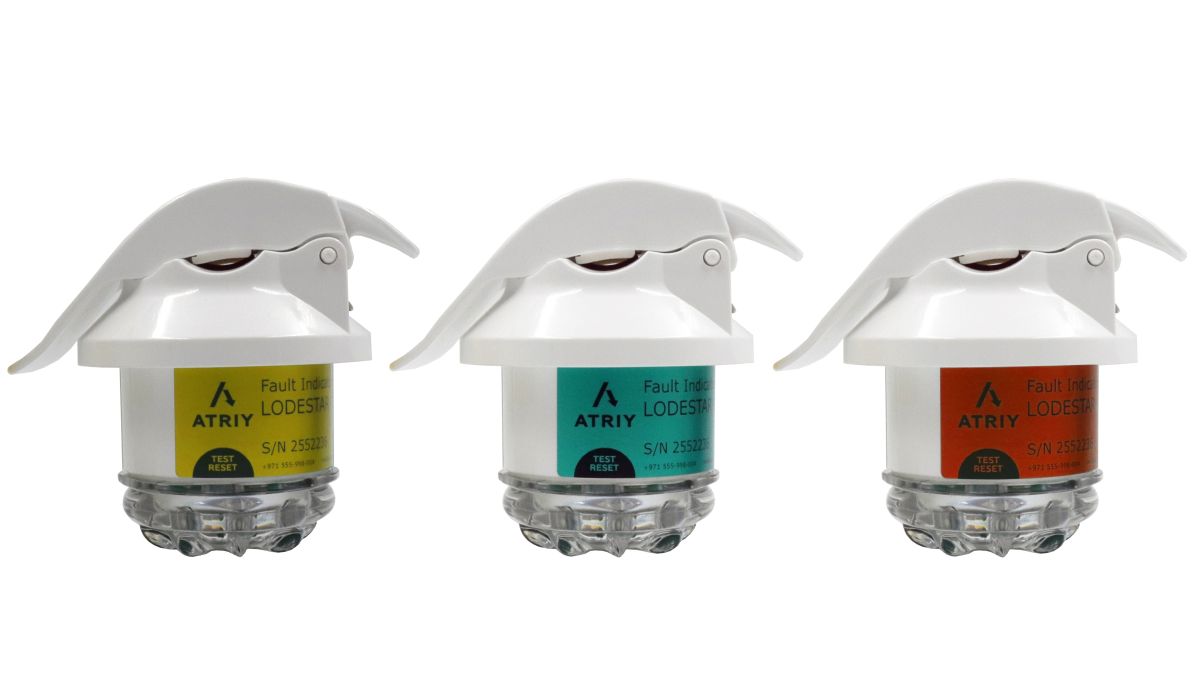

Lodestar CL0.5B

INQUIRY NOW

Technical specifications

PARAMETER	VALUE
Operating parameters
Types of registered events	PtP faults PtG faults transient faults

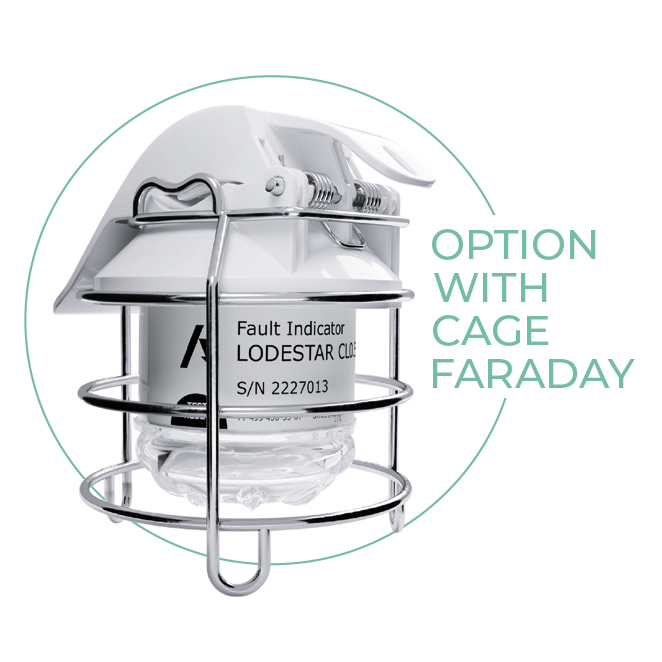

Operating voltage, kV	6-36 36-70 (option with Faraday cage)
Operating current, A	0-1000
Operating frequency, Hz	50/60
Conductor size	5-40 mm / 19,6-1256 mm²
Fault sensing
Detection of earth fault direction	Forward & Backward
Absolute threshold, A	20 A÷1000
Differential thresholds	20 А÷500 A / 50%÷500%
Minimum fault sensing (PtG) Zero sequence current thresholds/3I0, A	0.5-100
Response time, ms	20
Fault notification
Visual	ultra bright LED (white): ≥ 100 m – day time ≥ 500 m – night time
Resistance
Current withstand, kA/ms	25/500
In-rush resistance, ms	0-200 /step 20
Communication
Short-range communication technology	built-in BLE module, 50 m
On-site configuration and control	Mobile App Lodestar (Android, iOS)
Long-distance communication	pole-mounted communication box (GSM)
Fault management software	KOMORSAN
Reset
By timer, hour	1-72 (configurable)
Remote	Lodestar App, KOMORSAN, SCADA
Reenergized line	by voltage
Manual	magnet
Physical characteristics
Dimensions, mm	140 x 114 x 158
Weight, kg	0.55
Housing	UV resistant polycarbonate
Ambient conditions
Temperature range, °C	from – 40 to + 85
IP protection	IP68
Salty fog	resistant (IEC 60068-2-11)
Installation
Installation tools	dielectric rod Lodestar hotstick tool adaptor
Installation method	Live line
Battery
Battery type and capacity	lithium, 3.6 V
Battery life time	>1000 h, >7 years
Low battery alarm	at 20 % of remaining battery load: visual by LED blinking (yellow color) KOMORSAN notification
Other
Applicable standards	ANSI / IEEE 495
Internal memory	20 000 events
Measured telemetry parameters	current voltage absence/presence

*Only for isolated neutral grounding. Min 5 km behind FPIs is required.

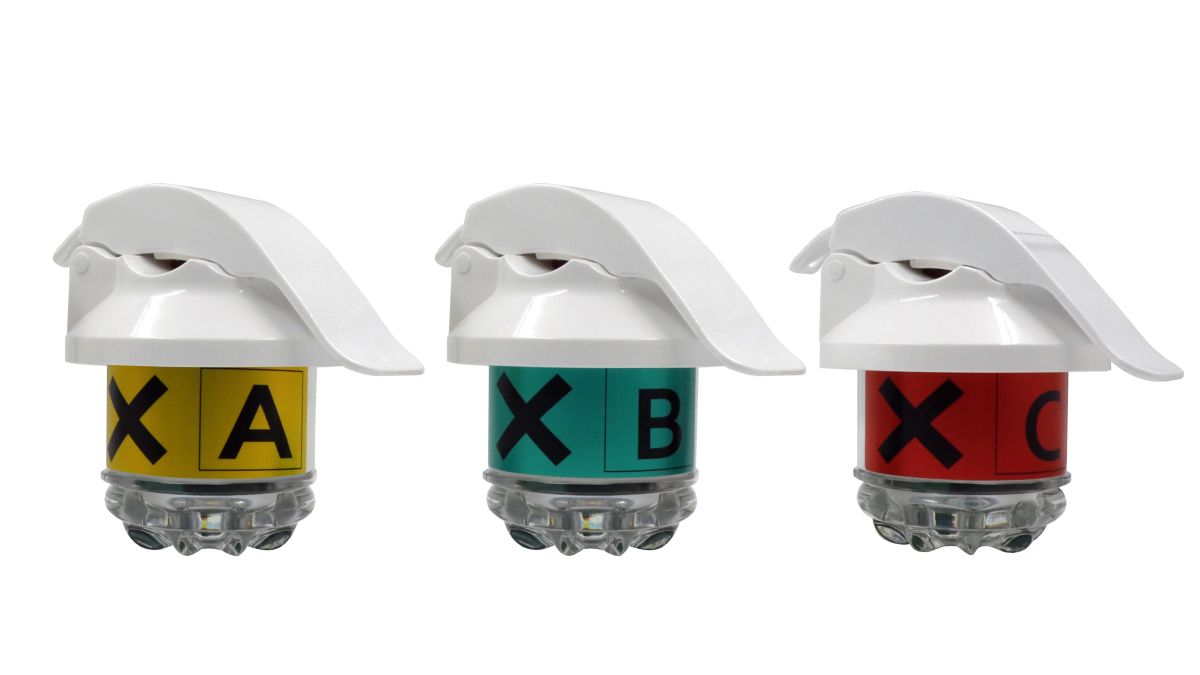

Lodestar CL0.5B was designed to work in isolated and compensated networks with extremely low levels of residual current. Lodestar CL0.5B has high accuracy of all types of faults detection.

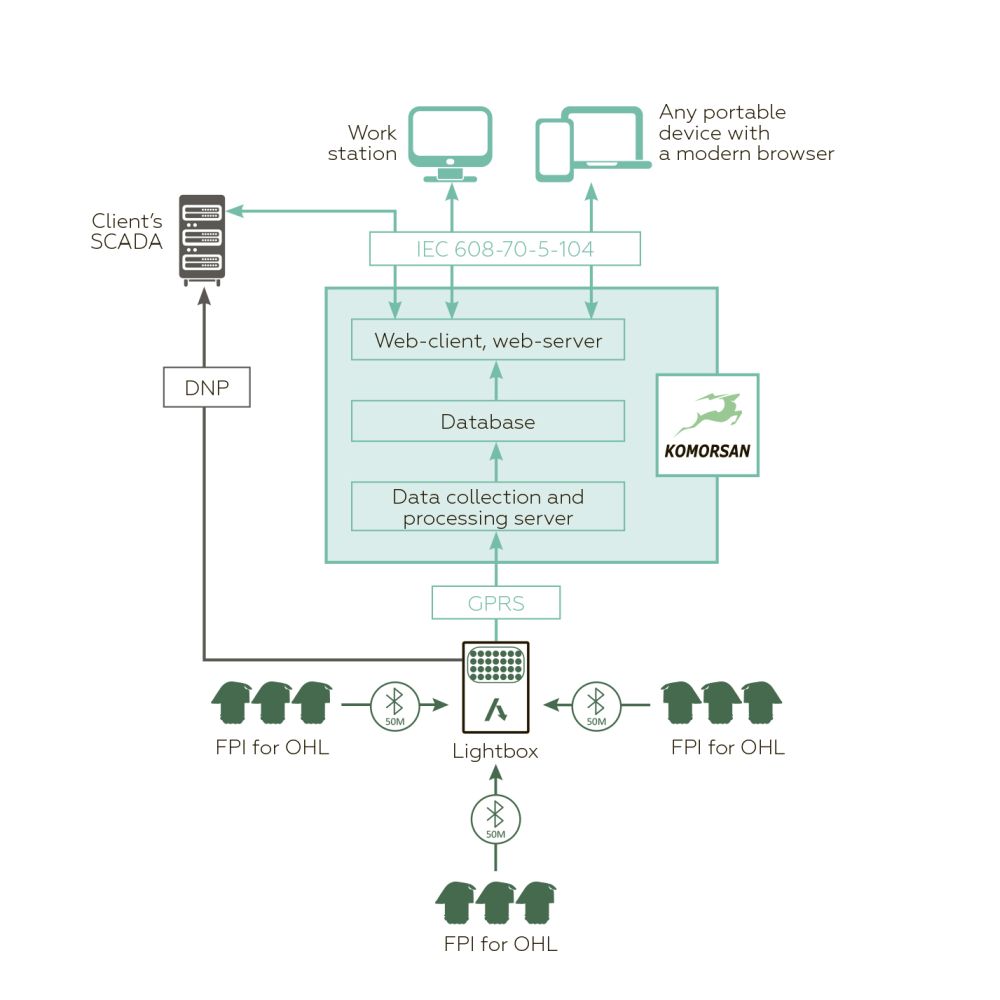

In the event of a fault on an overhead line, the indicators flash using ultra-bright LEDs, with the flashing pattern corresponding to the specific fault type. To enable data transmission from the devices to the KOMORSAN data collection server or to the dispatcher’s SCADA system, the devices can be equipped with the Lodestar Smartbox or Lightbox data transmission unit.

Lodestar CL0.5B benefits:

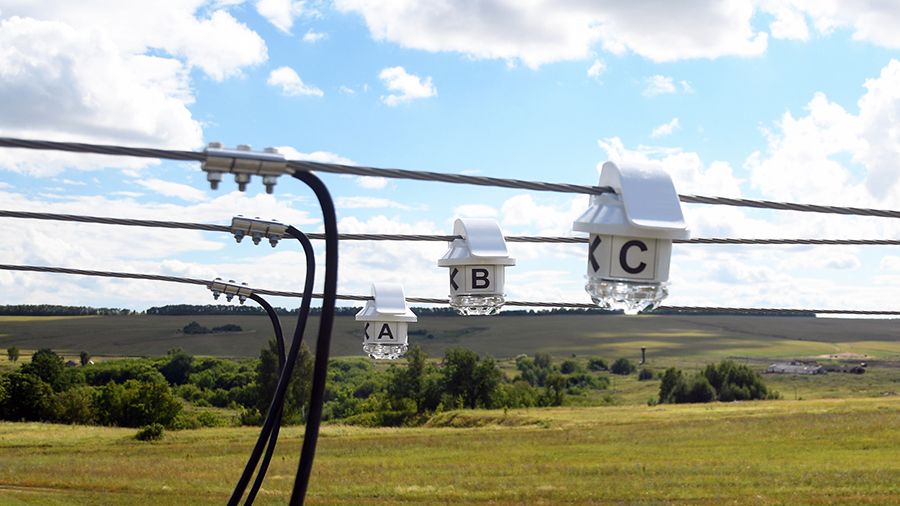

Versatile installation – independent of conductor configuration and number of circuits.
Secure attachment – reliable clamp for firm mounting on the conductor.
Hot‑stick installation – easy mounting without de‑energizing the line.
Flexible SCADA integration – IEC 60870‑5‑104 via KOMORSAN software or direct DNP3 connection using a communication unit.
Directional fault detection – identifies fault current direction.
Any neutral grounding type – effective operation in any neutral grounding arrangement.
Versatile network compatibility – suitable for radial and looped networks with single or multiple feeds.
