Recloser IDD-VCR

Technical specifications

PARAMETER	VALUE
Load switch type	Vacuum
Network frequency	50/60 Hz
Rated voltage	10 kV
Maximum operating voltage	12 kV
Rated current	630 A
Rated breaking current	12.5 kA
Mechanical endurance (O-C cycles), min.	30,000
Switching endurance:
- At rated current (O-C cycles), min.	30,000
- At rated breaking current (O-C cycles), min.	100
Closing time (max.)	60 ms
Total break time (max.)	45 ms
Standard auto-reclosing (AR) cycle	O-0.1s-C-O-1s-C

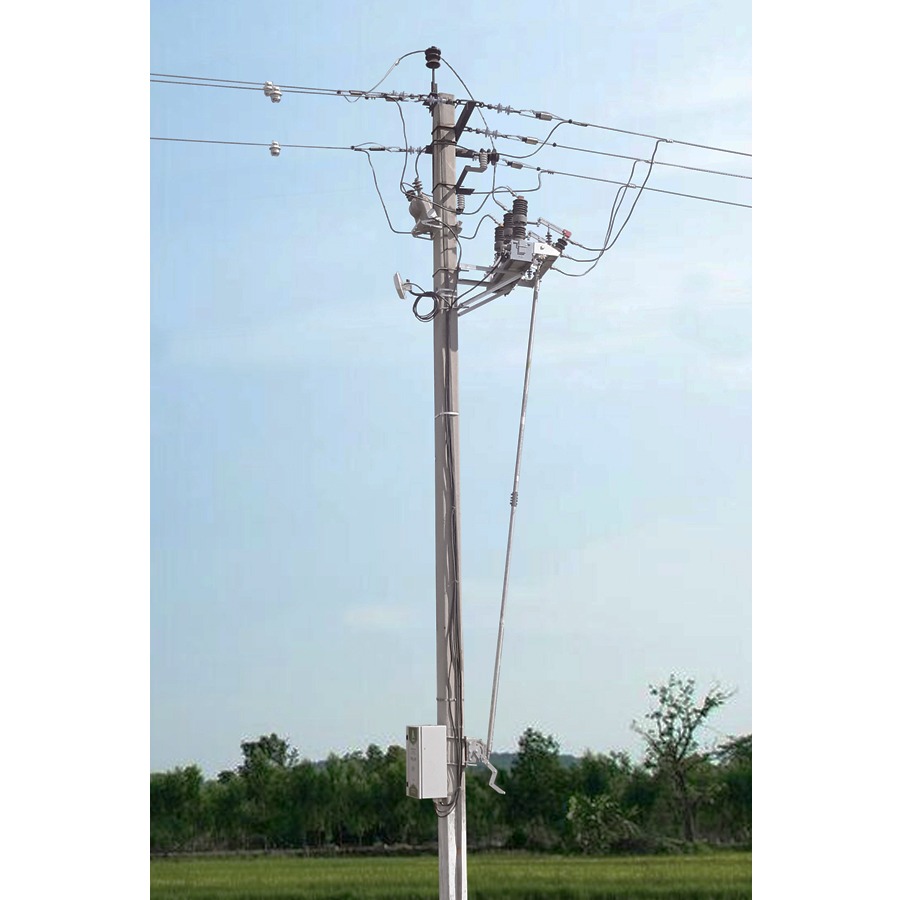

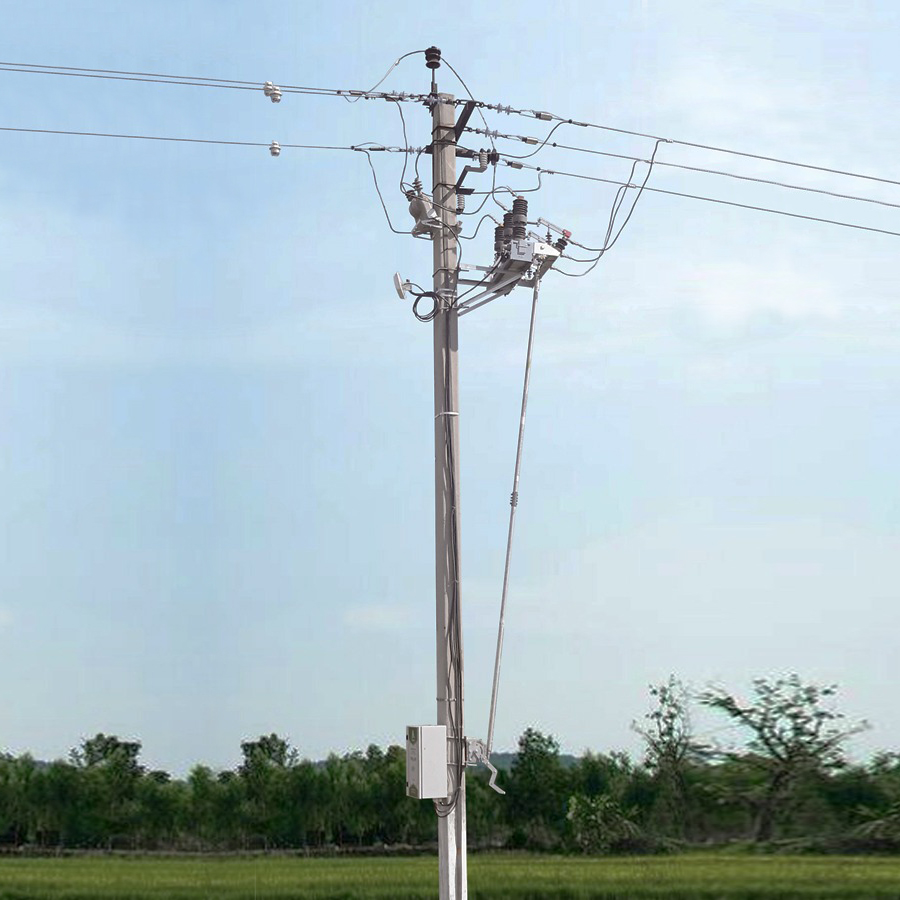

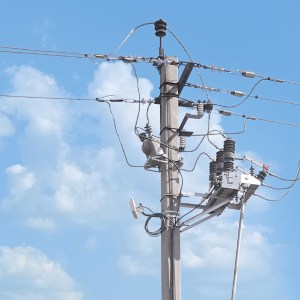

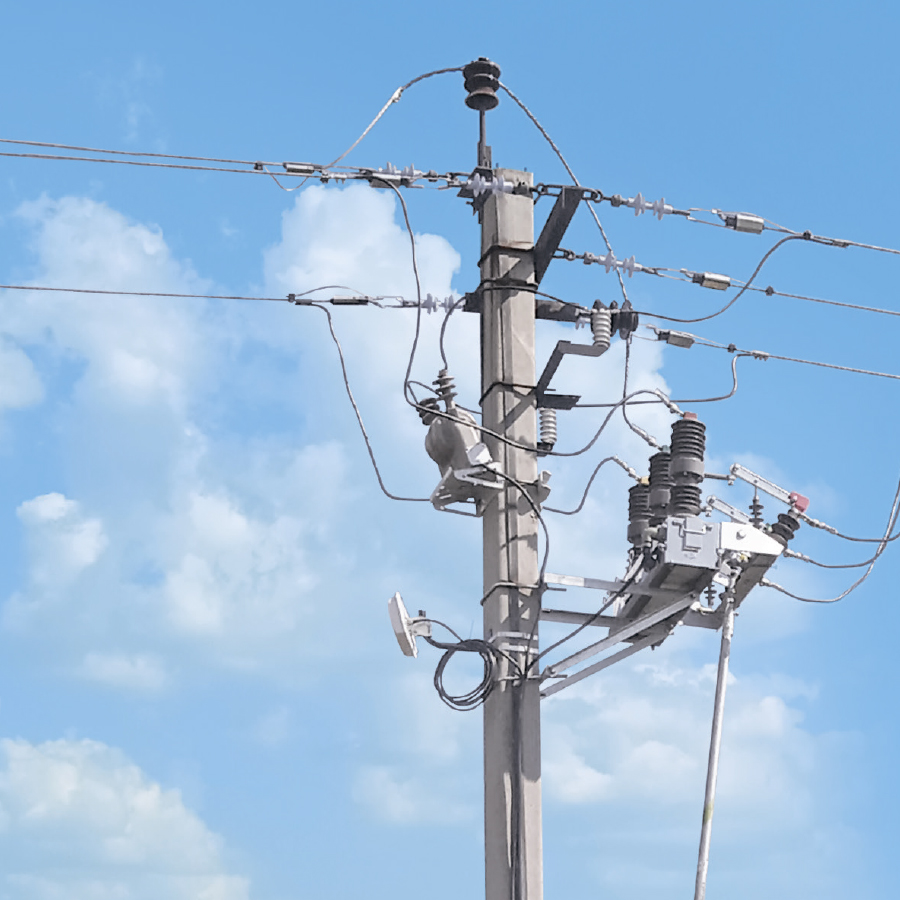

The IDD-VCR Recloser is used as an automatic sectioning point and local backup points in networks with multiple power sources in projects aimed at improving the reliability of consumer power supply.

The IDD-VCR Vacuum Recloser is a modern solution for the automation and protection of electrical networks. This vacuum recloser is designed for reliable and efficient management of medium-voltage distribution networks. The recloser is equipped with an advanced control and monitoring system, ensuring high operational reliability even under the most challenging conditions.

The device operates without reconfiguration in radial, open, closed-looped ring networks, and ring networks with dual power supply, featuring automatic or manual power supply restoration. The IDD-VCR Recloser blocks the start of overcurrent protection stages in the presence of inrush current from power transformer magnetization. The operating characteristics of automatic relay protection functions comply with ANSI-50 and ANSI-51 standards.

Advantages of IDD-VCR Vacuum Recloser:

The IDD-VCR Vacuum Recloser offers a range of advantages that make it the optimal choice for various applications:

Implementation of Relay Protection and Automation Functions:
- Overcurrent protection with faulted phase indication;
- Current cutoff with faulted phase indication;
- Single-phase Ground Fault Protection;
- Auto-reclosing (AR).
Visible circuit break, reducing the time required to prepare a damaged line section for repair.
Prompt service maintenance.
High reliability and durability: IDD-VCR Vacuum Recloser is designed with all the requirements for reliability and durability of distribution network equipment. Its construction ensures a long service life without the need for frequent maintenance.
Fast network restoration: The recloser can automatically restore network operation after short-term faults, minimizing downtime and improving power supply quality.
Modern control technologies: The vacuum recloser is equipped with an intelligent control system that allows precise monitoring of network parameters and rapid response to emergency situations.

Capabilities of IDD-VCR:

switching on/off sections of power grid;
disconnecting damaged sections;
support for protocols: IEC 60870-5-104, IEC 61850-8-1;
measurement and transmission of AC RMS current values;
recording of date, time, event type, and maximum values;
log of operational and emergency events, on/off counters.

Application area of vacuum recloser:

IDD-VCR Vacuum Recloser is ideal for use in medium-voltage distribution networks, industrial, and utility facilities. It is also widely used in power systems requiring high-reliability protection and automation.

ATRIY offers the IDD-VCR Vacuum Recloser for those who value reliability, efficiency, and modern technologies in the scope of distribution networks. By choosing our vacuum recloser, you receive high-quality equipment that will ensure the stable operation of your networks and enhance their safety. Fill out the form below to receive a detailed consultation from our specialists, or call us to place an order.
