Technical characteristics

PARAMETER	VALUE
Power supply
Types of registered events	PtP faults PtG faults transient faults
Short-circuit current sensitivity, A	20
Automatic fault current threshold adjustment	+
Voltage monitoring	+
Zero sequence current sensitivity, A	0.2
Selective determination of Phase-to-Phase Fault	+
Detection of earth fault direction	+
Detection of direction of zero sequence current flow	+
Power supply from the overhead line	+
General description of devices
Operating voltage, kV	6-36
Operating frequency, Hz	50/60
Visual indication	blinking ultra-bright LEDs detection range up to 100 m (during the day), up to 500 m (at night)
LED brightness	at least 20000 mcd per LED, 360° view
Number of alarms stored in the internal non-volatile memory	up to 20 000
Remote control (for field config)	Bluetooth BLE (2,4 GHz)
Remote communication	optional GSM channel
Types of actuation control	visual by short-range radio channel (handheld remote control) remote via Komorsan & SCADA
Reset indication	voltage restoration by timer magnet from the portable control
Indicator health control	magnet portable remote control remotely
Changing settings (setpoints)	on the short-range radio channel using a portable remote control remotely using the «KOMORSAN Web-client» software.
SMS notification	up to 8 phone numbers composition of the message: GPS coordinates, type of accident, serial number
Reading GPS coordinates	+
Time to prepare the kit for repeated triggering	no more than 3 sec.
Integration with SCADA systems	connection to any existing SCADA easily via IEC 60870-5-104 by using KOMORSAN software built-in GSM modem (for Lodestar Master FPI) data transmission to SCADA system using DNP3 protocol
Source of power	from the overhead line
Battery life (in standby mode)	batteries are not required
Thresholds
Absolute current threshold, A	20÷1000
Differential current threshold in A	20÷500
Differential current threshold in %	50÷500%
Current withstand (IEEE495, 4.4.7)	25 kA/500 ms
Inrush current restraint, ms	0-200
Setting the reset timer, hours	arbitrarily from 1 to 72
The minimum duration of the emergency process, s	0,02
Exploitation

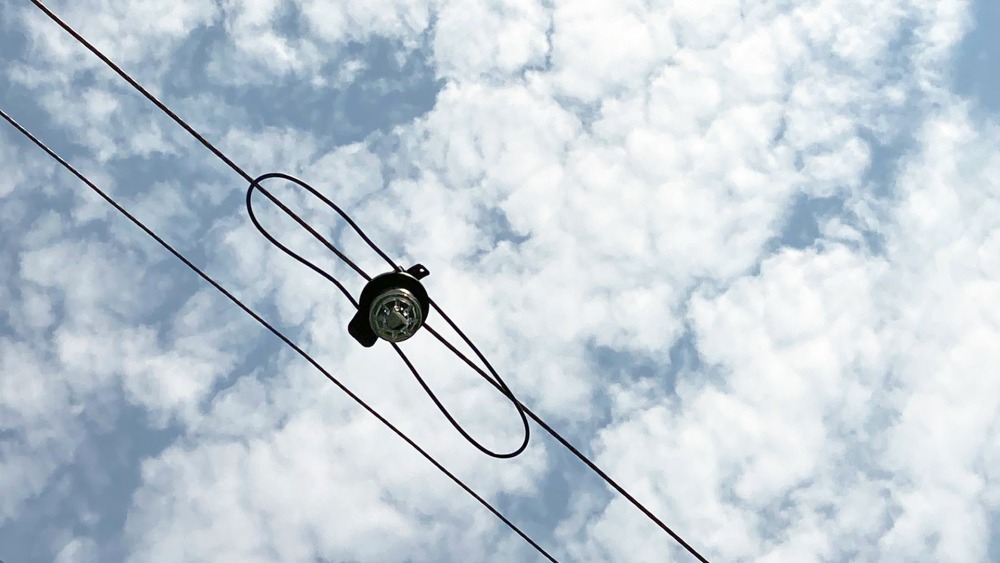

Installation location	on the overhead line (conductor)
Conductor diameters, mm	5-40
Installation on live line	+
Temperature range, °С	from - 40 to + 85
Protection class	IP 68 according IEC 60529
Impact of climatic environmental factors	resistant to UV radiation resistant to wind load of 40 m/s without ice and 23 m/s with ice with 35 mm wall thickness
Impact of mechanical factors	corresponds to exploitation group M1 resistant to galloping

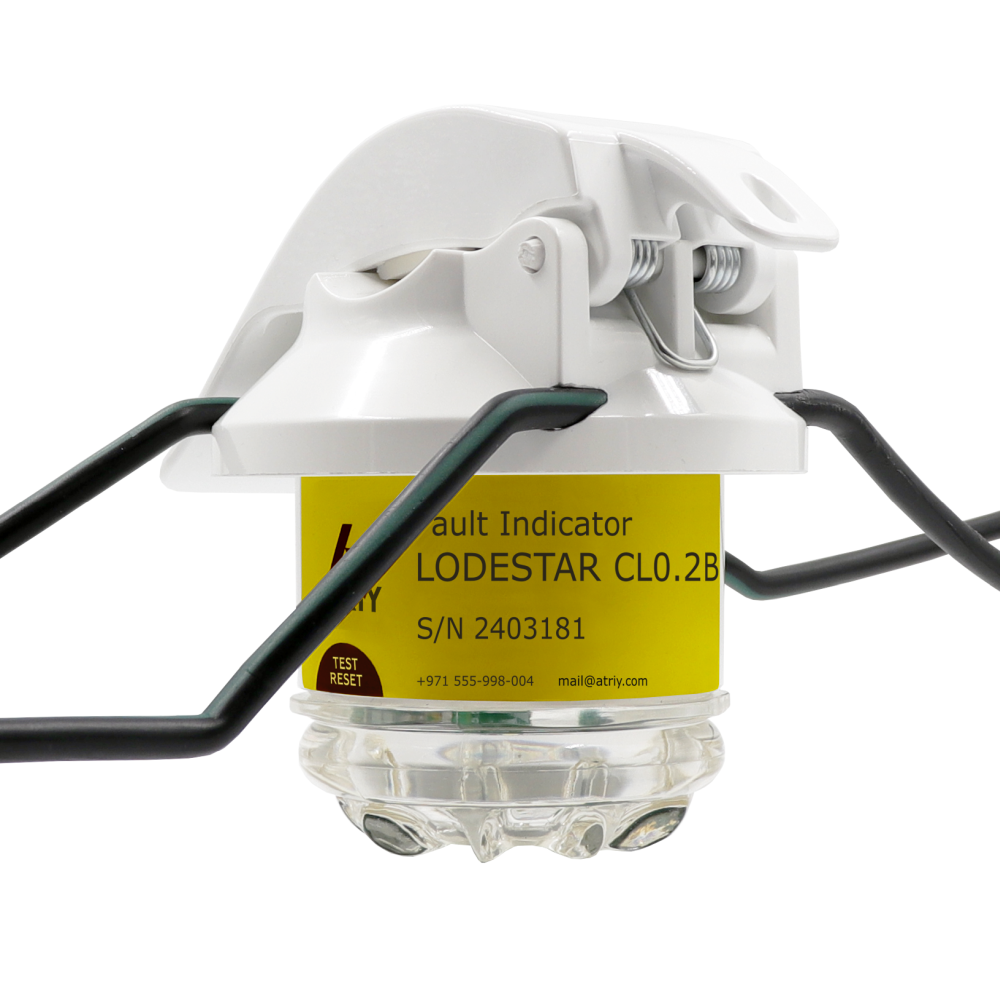

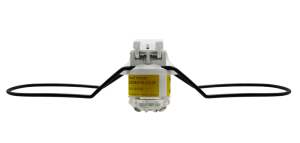

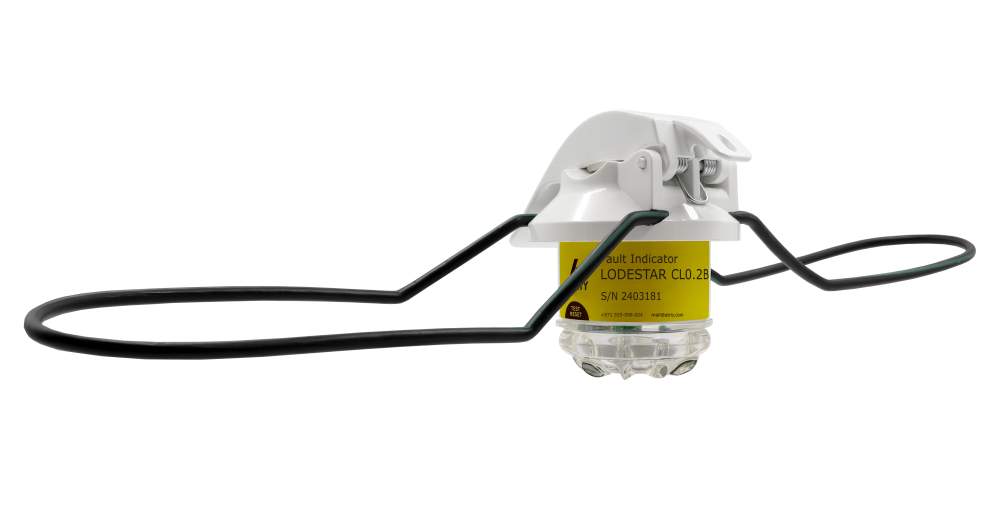

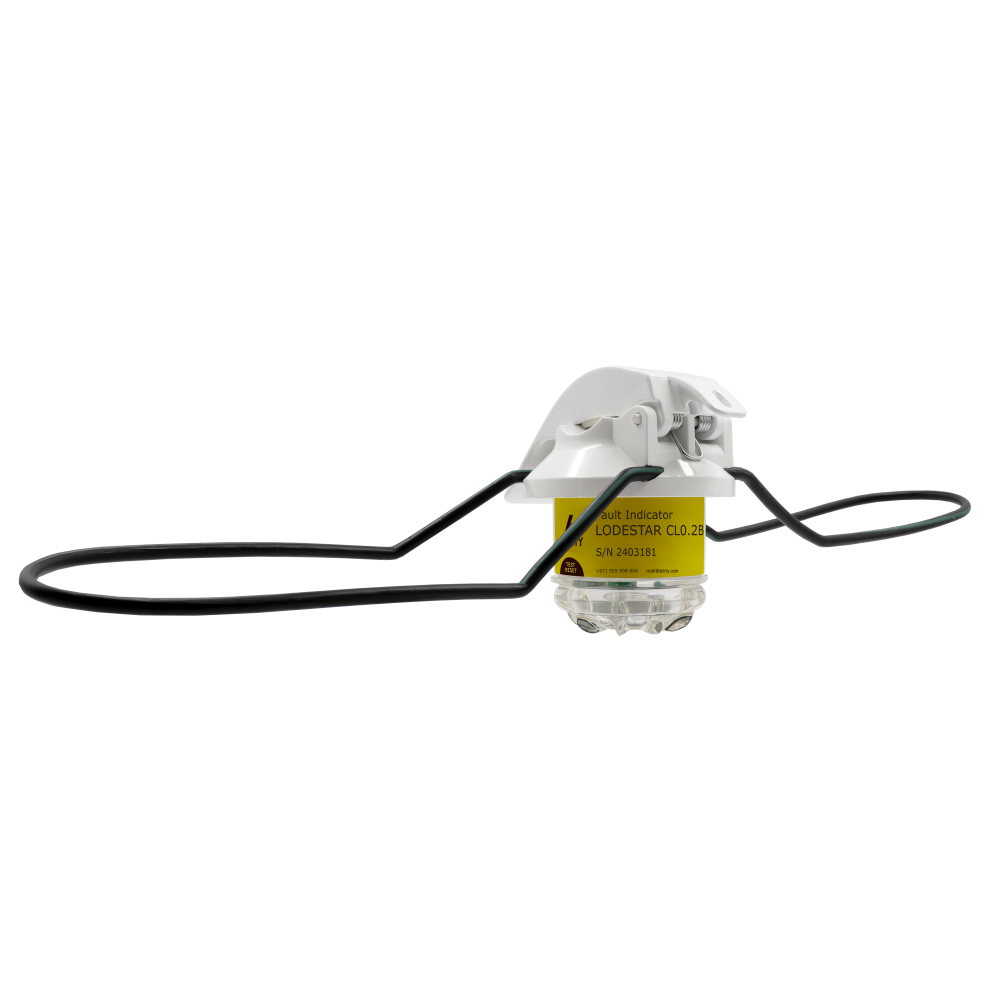

Fault Passage IndicatorsLodestar CL0.2B VEH are powered from the line.

The devices are designed to locate the damaged section on overhead lines in 6–36 kV distribution networks.

A key benefit of the Lodestar CL 0.2 B VEH is its maintenance-free internal battery. The indicator is powered directly from the line voltage (6 kVand above).

Benefits:

Power supply – powered directly from line voltage.
Maintenance-free operation – no servicing needed throughout the entire service life.
High sensitivity – detects fault currents down to 0.2 A.

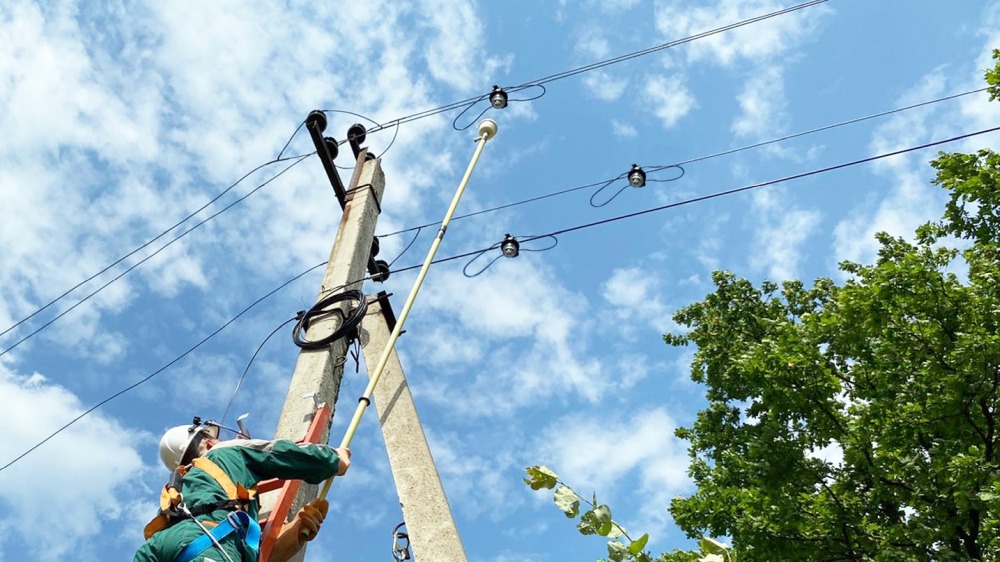

Easy installation – can be installed on any type of overhead line without deenergizing.
Automatic pickup threshold adjustment – adapts to network conditions.
Event recording – captures oscillograms and fault event logs for post‑fault analysis.
Directional fault detection – detects multi‑phase faults (short circuits) and single‑phase earth faults with direction indication for any neutral grounding type.
Remote communication – optional GSM module enables direct data transmission to SCADA systems.

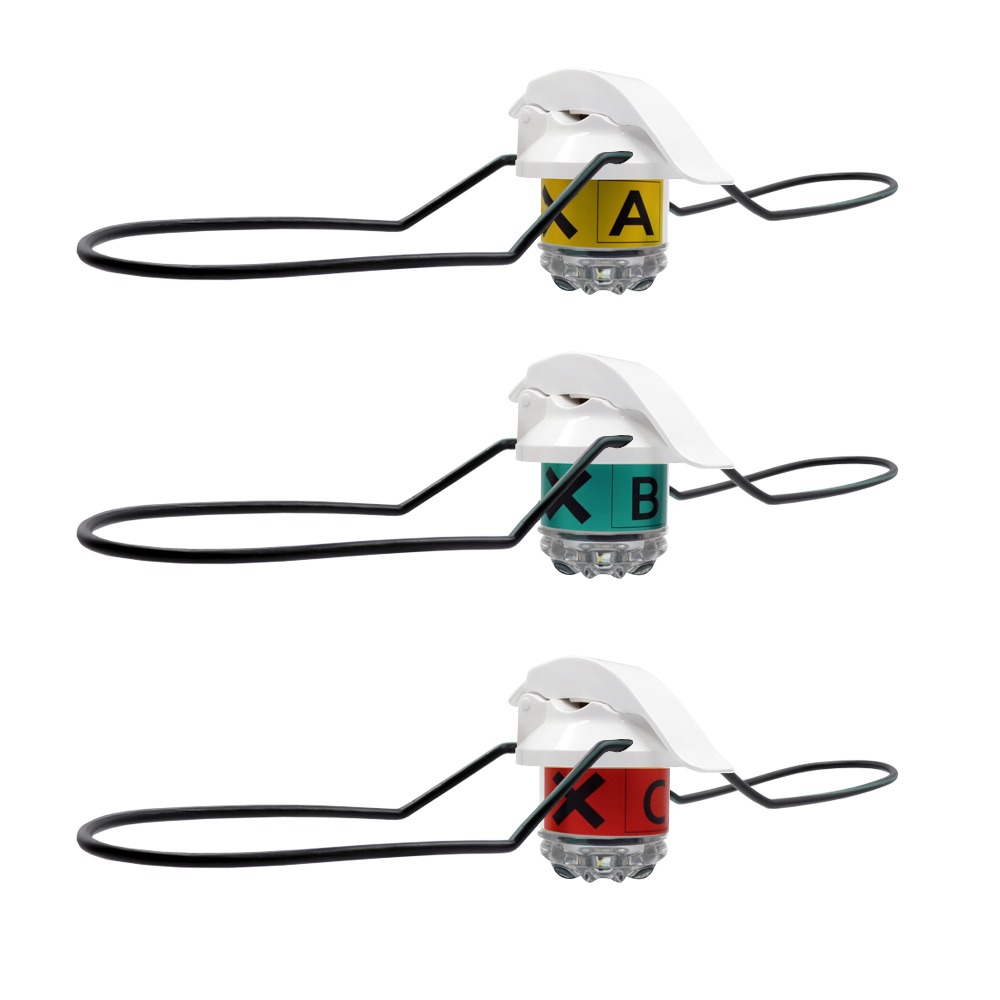

The Lodestar CL0.2B VEH set consists of three indicators and has a short-range radio channel for connection using the Lodestar App remote control. Lodestar CL0.2B VEH can communicate with different types of receiver models: Communication unit Lodestar Lightbox, Communication unit Lodestar Smartbox.
