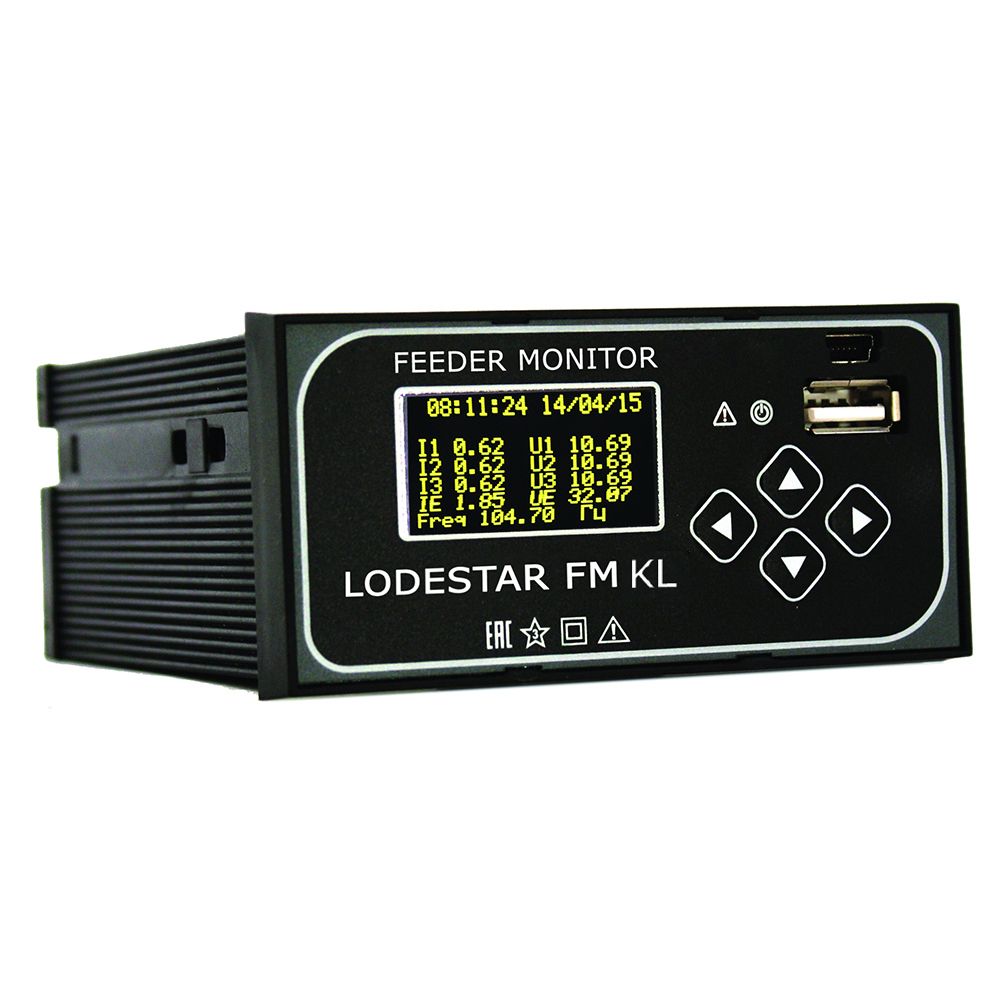

Lodestar FM KL
Technical specifications
| PARAMETER | VALUE |
| Mains voltage level, kV | 6-36 |
| Recorded fault types | |
| Identification of two-phase and three-phase faults | + |
| Identification of single-phase PtG | + |
| Determination of singlephase PtG direction | + |
| Fault detection on line switch-on (single-phase PtG, PtP) | + |
| Minimum zero-sequence current for single-phase PtG registration), А | 0.5 |
| General description of devices | |
| Visual fault indication |
|
| Power supply | |
| AC or DC supply voltage, V | 110-270 ~110–240 ±10% |
| External backup power supply, V | 9–18 (nom. 12) |
| Communication interface | RS-485 |
| Communication protocol | Modbus RTU |
| Operation monitoring |
|
| Measurement accuracy | |
| Current, % | 3 |
| Voltage, % |
|
| Active, reactive and apparent power,% | 3 |
| Frequency, % | 1 |
| Mounting | |
| Mounting | switchboard mounting |
| External transducer | |
| Сurrent sensor | Rogowski coil, (3 pcs.) |
| Voltage transformer (VT) |
|
| Operating temperature range, °С | from –40 to +70 |
| IP rating of the feeder monitor | IP 20 |
The universal fault event recorder is designed to detect and determine the direction of PtP and PtG faults, as well as to verify the presence or absence of voltage on 6-36 kV overhead and cable lines.
Benefits:
- High measurement accuracy – 0.5% accuracy class for current and voltage.
- Comprehensive network monitoring – current, voltage, frequency, power factor, power flow direction.
- Fault event logging – records fault events with time stamps.
- Fault direction and phase identification – indicates fault direction (towards/ away from busbars) and faulted phases.
- Fault relay output – for external alarm or SCADA integration.
- Universal network compatibility – any network topology and any neutral grounding type.
