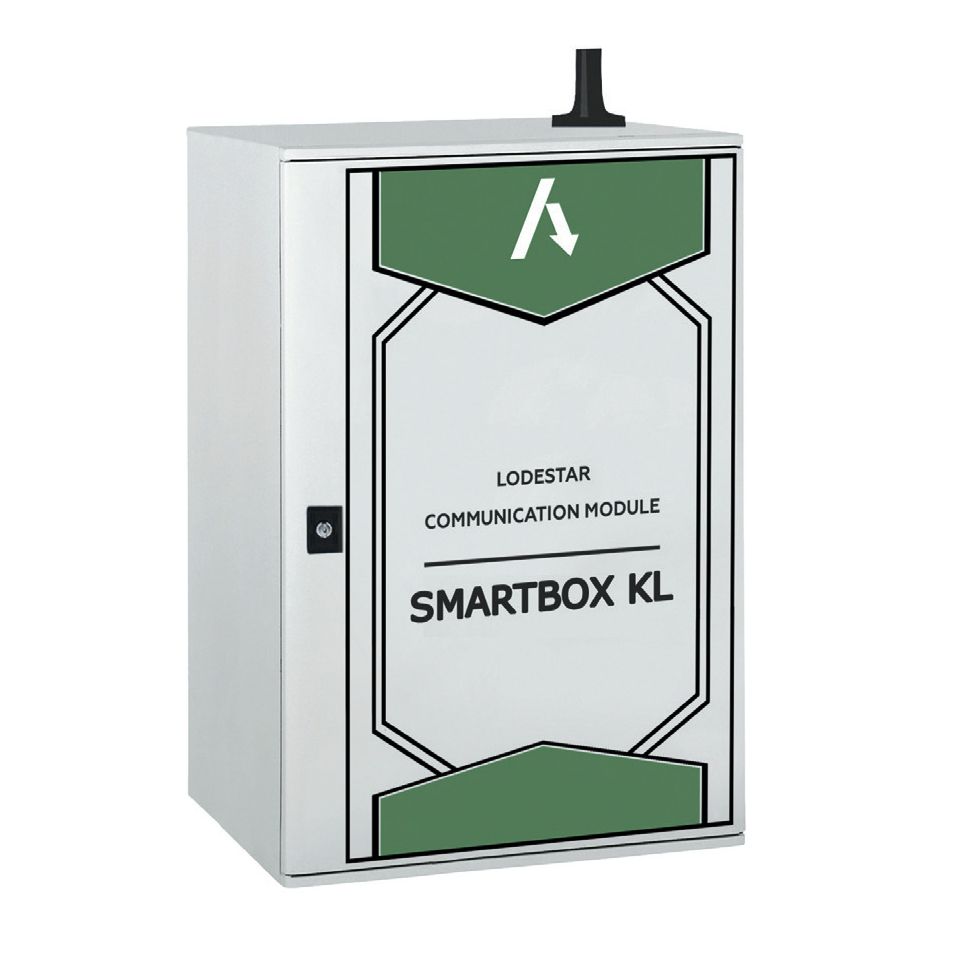

Lodestar Smartbox KL
Technical characteristics
| PARAMETER | VALUE |
| Installation | |
| Mounting | pole-mounted |
| On-load mounting | up to 4 |
| Enclosure indication | - |
| Communication | |
| Device communications | |
|
RS-485, Ethernet |
|
Modbus, IEC-104 |
| SCADA communication | |
|
GSM/GPRS/3G |
|
IEC 60870-5-104 |
| Physical characteristics | |
| IP protection | IP66 |
| Operating temperature, C° | from –40 to + 85 |
| Source of power | |
| Main: From a single-phase AC source | 220 V |
| Backup: From internal battery | 12 V / 7 Аh |
| Battery backup operating time: Not less than | 24 H |
| Self-diagnosis | + |
| IP protection | IP 65 |
| Operating Temperature Range, °С | – 40 to + 70° |
ADDITIONAL EQUIPMENT FOR EARTH FAU LT INDICAT ORS AND FEEDER MONITORS
The SMARTBOX KL is designed for transmitting network data from Lodestar FM series devices to the customer’s control center. It is equipped with a GSM data transmission channel and features a high-sensitivity external GSM antenna, ensuring reliable communication with the control center within areas of stable mobile network coverage.
Benefits:
- Direct SCADA integration – IEC 60870‑5‑104 protocol for direct data transmission to any SCADA system.
- Advanced information security – supports IPsec, OpenVPN, and other security protocols.
- Flexible power supply – 220 V AC (auxiliary transformer) or optional solar panel.
