Lodestar CL0.5 BM-S
Technical characteristics
| PARAMETER | VALUE |
| Power supply | |
| Types of registered events |
|
| Short-circuit current sensitivity, A | 20 |
| Automatic fault current threshold adjustment | + |
| Voltage monitoring | + |
| Zero sequence current sensitivity, A | 0.5 |
| Selective determination of Phase-to-Phase Fault | + |
| Detection of earth fault direction | + |
| Detection of direction of zero sequence current flow | + |
| Power supply from the overhead line | - |
| General description of devices | |
| Operating voltage, kV | 6-36 |
| Operating frequency, Hz | 50/60 |
| Visual indication |
|
| LED brightness | at least 20000 mcd per LED, 360° view |
| Number of alarms stored in the internal non-volatile memory | up to 20 000 |
| Remote control (for field config) | Bluetooth BLE (2,4 GHz) |
| Remote communication | Lodestar CLxx BM-Master is equipped with a GSM channel, for transmitting information from the indicators to the data collection server |
| Types of actuation control |
|
| Reset indication |
|
| Indicator health control |
|
| Changing settings (setpoints) |
|
| SMS notification |
|
| Reading GPS coordinates | + |
| Time to prepare the kit for repeated triggering | no more than 3 sec. |
| Integration with SCADA systems |
|
| Source of power |
|
| Total indication time, hours | > 2000 |
| Indicator life, hours | 130000 |
| Battery life (in standby mode) | 8-10 years |
| Thresholds | |
| Absolute current threshold, A | 20÷1000 |
| Differential current threshold in A | 20÷500 |
| Differential current threshold in % | 50÷500% |
| Current withstand (IEEE495, 4.4.7) | 25 kA/500 ms |
| Inrush current restraint, ms | 0-200 |
| Setting the reset timer, hours | arbitrarily from 1 to 72 |
| The minimum duration of the emergency process, s | 0,02 |
| Exploitation | |
| Installation location | on the overhead line (conductor) |
| Conductor diameters, mm | 5-40 |
| Installation on live line | + |
| Temperature range, °С | from - 40 to + 85 |
| Protection class | IP 68 according IEC 60529 |
| Impact of climatic environmental factors |
|
| Impact of mechanical factors |
|

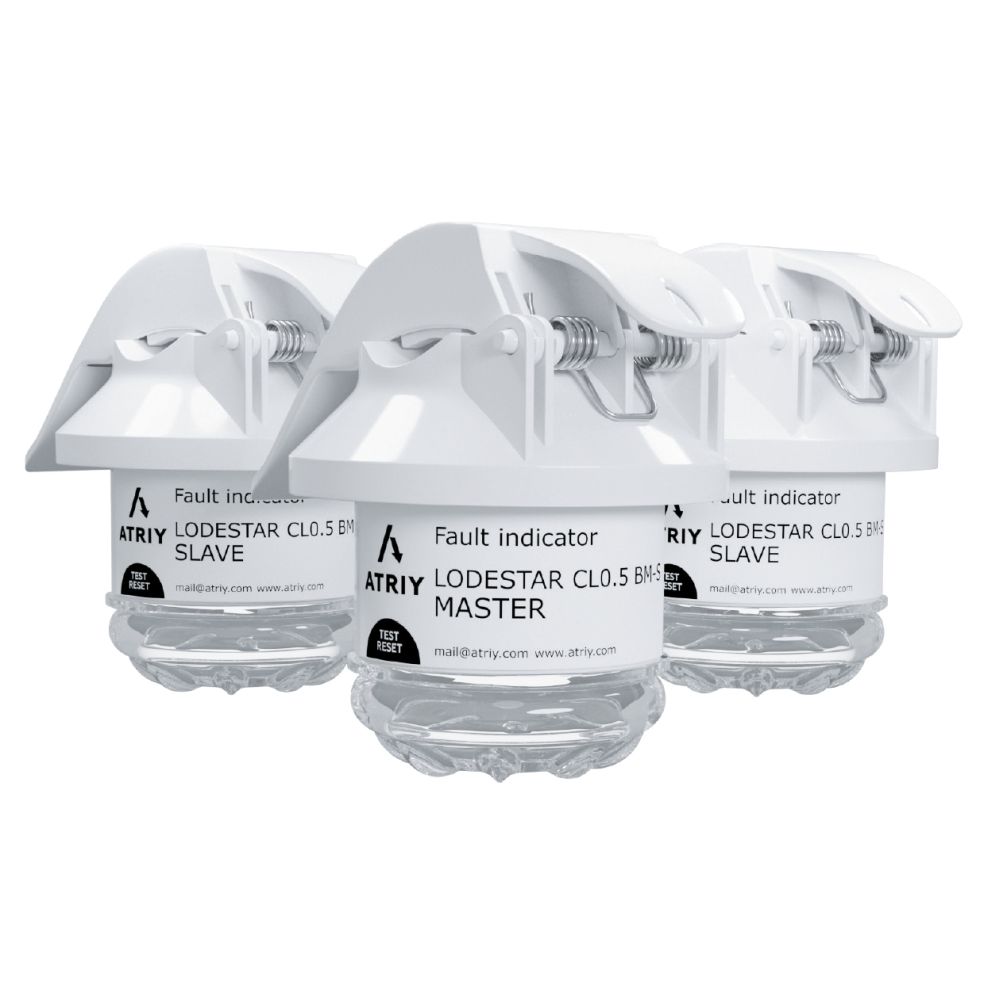

Lodestar CL0.5 BM-S model is an advanced solution for fault detection. The registering of faults is based on special intelligent algorithm, that makes possible to detect PtG fault and its direction from 0.5A.
The Lodestar CL0.5 BM‑S fault passage indicators are mounted directly on overhead line conductors and are designed to detect all types of faults in 6–36 kV distribution networks. The Lodestar CLx BM‑S enables fault notification systems with precise GPS coordinates for accurate fault location.

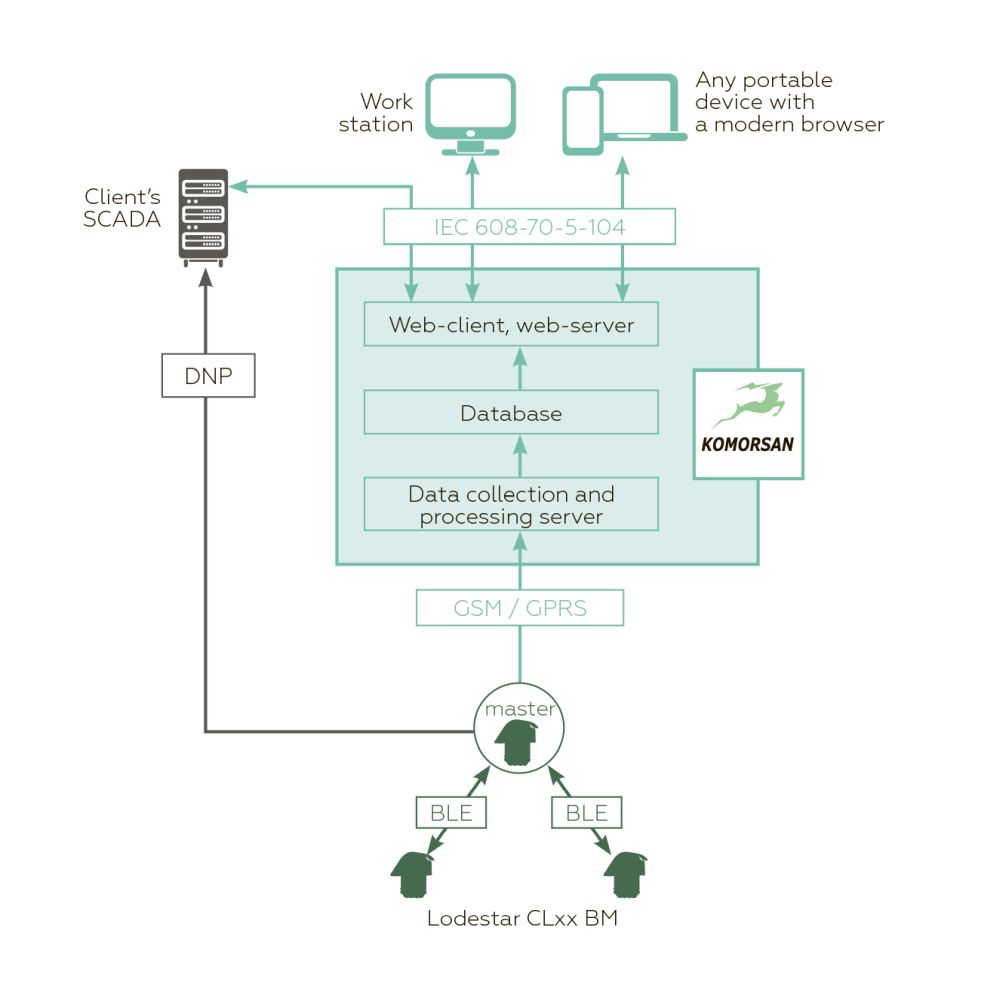

No need in additional pole-mounted RTU device anymore. Indicators communicate with one CL0.5 BM-S device via Bluetooth radio signal, then CL0.5 BM-S Master communicates by GSM with KOMORSAN and transmit data to any SCADA-System via IEC 60870-5-104.
Benefits:
- Built‑in GSM module – direct data transmission, no additional equipment required.
- No external concentrator – reduces system cost and complexity.
- Hot‑stick installation – easy mounting without de‑energizing the line.
- Flexible SCADA integration – IEC 60870‑5‑104 via KOMORSAN software or direct DNP3 connection.
- Directional fault detection – identifies fault current direction.
- Any neutral grounding type – effective operation in any network.
- Versatile network compatibility – suitable for radial and looped networks with single or multiple feeds.
